"Standard" Wire colors to the controller (Tekonsha and others):
- Black, Battery Positive to controller
- White, Negative Ground for Controller
- Blue, Brake feed from controller to Trailer plug at back of truck
- Red, tap into truck Brake light switch signal to tell controller to apply brakes
Installing a brake control unit isn't very difficult. This task is made even easier if your tow vehicle is a late model and comes with a 7 Way Connector as part of the towing package.
In this case, installation is as simple as mounting the brake controller in a convenient, easy to reach place, usually under the dash, just above your right leg and connecting the wires from the brake control to the wiring harness and then plugging the harness into the harness located under the dash.
Most newer vehicles equipped with towing packages are now providing a wiring harness which looks similar the ones in the picture below depending on the make of your vehicle:

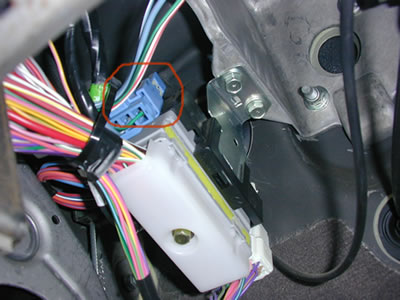

Dodge vehicles have an independent and movable wiring harness. On some dodge vehicles, the harness is found loosely stuffed under the dash above the driver's right leg. And on others, it can be found attached to a module above the driver's left leg. The harness connector is often blue as shown in the picture below. You must have the factory plug harness to plug in (I sell these, if you need one, hint, hint)
In order for this to work, you must have the factory tow package. I can not promise this is good for all Dodges. If you do not have the factory tow package, you may still have the plug under the dash. If so, you may have to run a wire to the back of the truck, but you may at least have the brake light signal wire. If you have nothing, or this is a older truck, you will have to run the blue wire from the controller all the way to the back up the truck, and connect to the blue terminal on the trailer plug. You will also have to locate the brake light switch, and find the wire that is hot when the brake lights come one (be careful if you have ABS, not to get the wrong wire, it will mess up the ABS!). In addition, you must provide the controller with fused battery + and - feed.
