"Standard" Wire colors to the controller (Tekonsha and others):
- Black, Battery Positive to controller
- White, Negative Ground for Controller
- Blue, Brake feed from controller to Trailer plug at back of truck
- Red, tap into truck Brake light switch signal to tell controller to apply brakes
Remember, the above colors are just a GUIDE. your colors may be different, read the instructions!

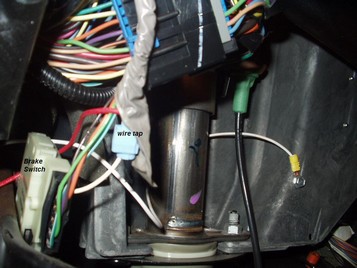

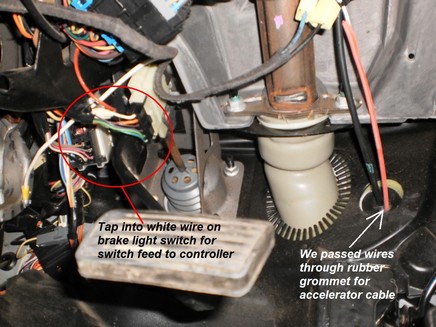

We found the brake light switch tap on the switch. It was the white wire, second or third from the end (from the back of the truck) The picture shows looking up from the floorboard.
Get a test light and test all the pins on this plug, looking for the one that lights up when you press the brake pedal. The brake light switch is very hard to reach, but with a probe tester, look for a wire under the dash that lights with the brake lights. You are probabally looking for a small gauge white wire (seems most GM trucks of this era used white). Tap into the wire for the brake light feed (red wire on most controllers)
For power, we ran a wire through the firewall, and tapped onto the fuse panel under the hood, through a 20 amp Fuse or Circuit Breaker.

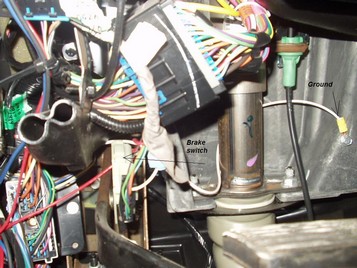

We grounded the controller under the dash to a ground screw. Easy.
The blue (brake wire to plug) was simply passed through a hole in the firewall and ran along the frame to the back plug on the truck. (making sure to use lots of tie wraps to keep the wire awy from hot and moving parts)
UNDER THE HOOD:

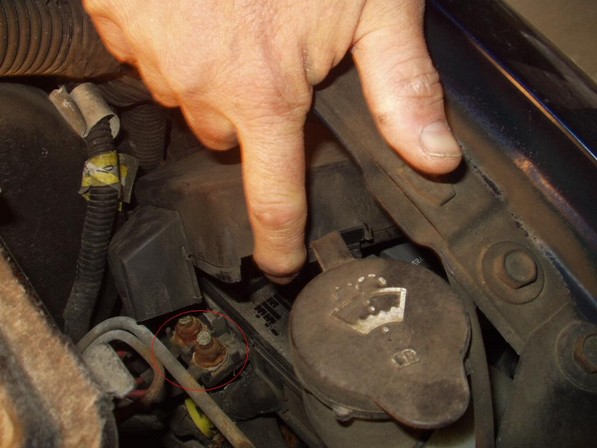

We removed one of the main power feed nuts on the fuse panel, and with a ring connector, got power to the Circuit breaker, to feed to controller
We used a 20 amp fuse Circuit Breaker to power the brake controller, AND supply power to the 12 Volt power terminal on the trailer plug. This truck did not have wire ran to the back, so we used our 2 conductor brake wire and ran it ourselves. Drilled a small 3/8" hole in a rubber plug in the fire wall to run the wire to the brake controller under the dash.
Make sure the wire is out of harms way when you run it to the back.
