"Standard" Wire colors to the controller (Tekonsha and others):
- Black, Battery Positive to controller
- White, Negative Ground for Controller
- Blue, Brake feed from controller to Trailer plug at back of truck
- Red, tap into truck Brake light switch signal to tell controller to apply brakes

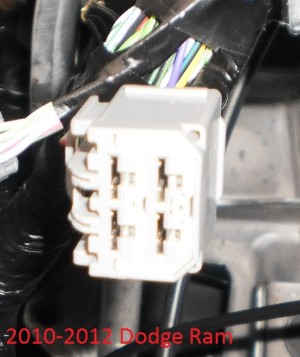

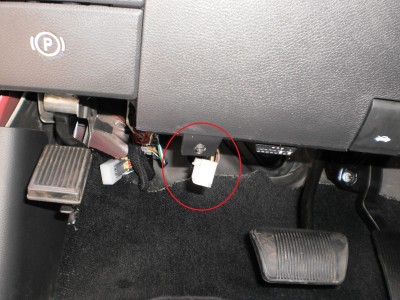

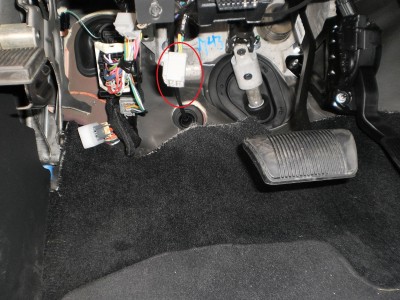

Simple "Plug and play" set on these trucks with the tow package. Find the plug under the dash, plug in the controller, mount the controller, done!
Remember, the above colors are just a GUIDE. your colors may be different, read the instructions!
