"Standard" Wire colors to the controller (Tekonsha and others):
- Black, Battery Positive to controller
- White, Negative Ground for Controller
- Blue, Brake feed from controller to Trailer plug at back of truck
- Red, tap into truck Brake light switch signal to tell controller to apply brakes
Remember, the above colors are just a GUIDE. your colors may be different, read the instructions!

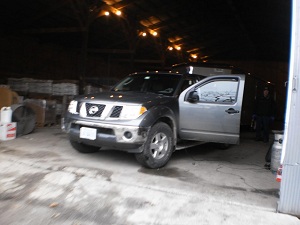

Most Frontier Pickup's from years 2005-2014 come with factory pre-wired for a brake controller and the model below did. Below are pictures of the plug located under the dash, sort of above the gas pedal.
Click on Any Picture for a Larger, Higher Quality Image
